Deutronic 105 Amp Battery Charging Computer: DBL-1600-14

USD $1,774.00



Request a call


Modern vehicles include a multitude of electrical and electronical components. Vehicle onboard networks possess more than 100 control devices that have to be powered. The hardware and software is adjusted optimally and individually to the respective application and guarantees the greatest possible amount of security and reliability. Deutronic charging computers have proven their worth a thousand of times and thus have been in use by leading OEMs worldwide for decades. An absolute interconnectivity offers a multitude of possibilities: from real time monitoring or remote control to the downstream analysis and processing of all saved data. This means that the applications are almost limitless.


  • Intelligent charger for motor vehicles starter battery (Lead acid/Gel/AGM/VRLA/Lithium-Ion Batteries)
  • 100% qualified for motor vehicles on-board electronic system/airbag
  • Use as battery charger, power supply and motor vehicles energy supply in buffer mode (support during diagnosis/flash programming)
  • Extensive protection functions and self-protection functions
  • Short circuit and reverse polarity protection
  • Protection against defective batteries
  • Reliable sparking suppression
  • Comfortable menu navigation / charging parameter configurable
  • Built-in communication interface
  • Sealed housing, protected against internal pollution
  • Status indication via display and high power LEDs
  • Menu navigation: English, French, German, Italian, Spanish

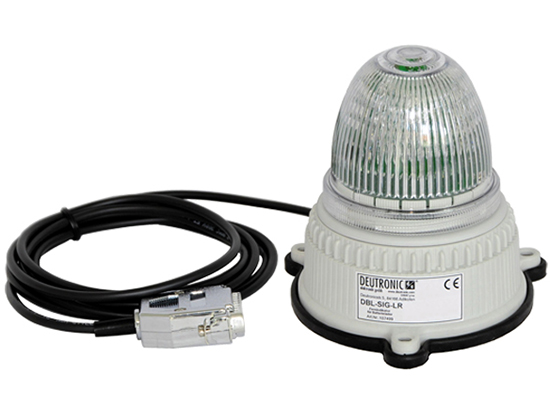

  • Wide range of accessories e.g. external visualization of operating state (DBL-SIG-LR remote indicator), charging cable etc.
  • Option: Customized charging parameters
  • Option: Operation with low temperature until -40°C
  • Option: Regeneration charging for deep discharged batteries
  • Electrical safety – certifications: EN60335, EN61010, UL1236
  • For motor vehicles starter battery (Lead acid/Gel/AGM/VRLA)
  • CUtilized and approved by well known automotive manufacturers



Weight approx. 18.1 lbs
Power supply max 105A V/Hz/A
Dimensions (L x W x H) 13.4 x 11.6 x 5.8 inch



776-140504 5m Mains Cable $25.00 Add to cart
776-140526 Transport System for 1 DBL Computer $267.00 Add to cart
776-140551 Wall Mount w/cable run for 1 DBL Computer $127.00 Add to cart
776-140708 5m Charging Cable $209.00 Add to cart
