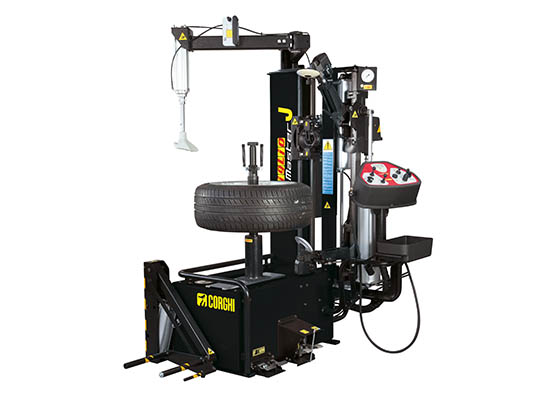

Touchless Tire Changer handles wheel assemblies 12"-32" up to 40" tire diam. Includes helper arm and wheel lift.



Features

• Electronic pre-selection of wheel diameter
• Smart Corghi Touchless System.
• Dual Bead Breaker with Controlled Penetration.
• Single movement wheel lift assembly with automatic self-centring wheel approach
• Bead Depressor.
• Reverse Wheel Adapter available.

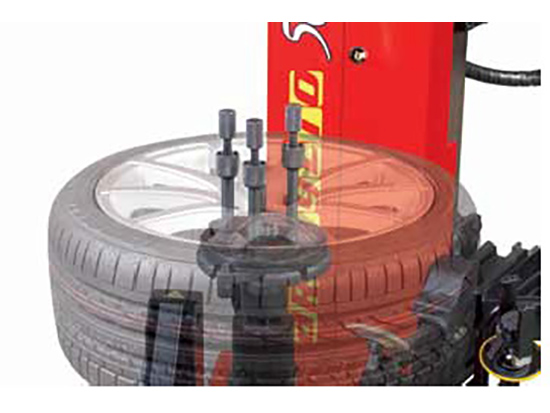

• Clad Wheel/Lug Adapter available.



Technical

Dimensions (L x W x H)	75 X 45 X 72	inch
Power supply	230V, 1PH, 50 Hz	V/Hz/A
Color	Black
Rim width	14	inch
Rim diameter	26	inch
Weight approx.	882	lbs
Motor output	0.98	kW
Wheel weight, max.	165	lbs
Tire width	14	inch
Tire diameter	40	inch



Accessories

684-4103232A	Yellow Cone cover for Master J	$28.00	Add to cart
684-4103235C	Mini plastic cone for Master J	$60.00	Add to cart
684-4103673A	Spring for pistol	$22.00	Add to cart
684-4106180	Pin for Roller	$86.00	Add to cart
684-4106888	Foot for BPT arm	$60.00	Add to cart
684-4118294	Small plastic cone for Master J	$48.00	Add to cart
684-461489B	Yellow Head insert for Master J	$8.00	Add to cart
684-5100688	White Roller	$246.00	Add to cart
684-801263517	Reverse Wheel Adapter	$1,338.00	Add to cart
684-811100087	Clad Wheel/Lug Hole Adapter	$1,338.00	Add to cart
