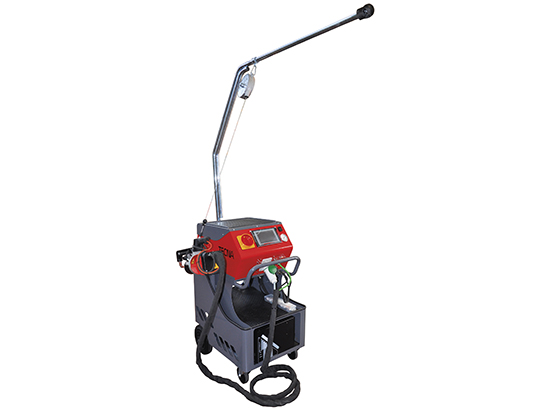

TECNA 3664 Smart-Plus Spot Welder

USD $26,753.00

505-3664P7

Cebotech, Inc.


Request a call



Inverter resistance spot welder with Smart Control. Welder automatically senses steel type and thickness, and sets the welding parameters without the need for operator input.



Features

  • Up to 14,000 Amps of output power at the electrode tips.
  • Up to 1,500 lbs. of squeeze force.
  • Latest Trans-gun design.
  • Long reach gun cable length allows for welding while car is still on the bench.
  • Water cooling all the way to the electrode tips for increased electrode life and weld consistency.
  • Balancer supports the weight of the welding gun minimizing operator fatigue.
  • Up-gradable software via USB port.
  • Weld data print-out for more complete record keeping.
  • Multiple welding arm configuration.



Technical

Temperature class F TI
Welding cable length 240 inch
Weight approx. 286 lbs
Power supply 230 3PH/60-50/60 V/Hz/A
Dimensions (L x W x H) 24 x 27 x 49 inch
