Sprinter 7000 - 208/230 V - 60 Hz Single Phase

USD $4,283.00

414-SP055.010-9005

Request a call



Click to view California Proposition 65 warning

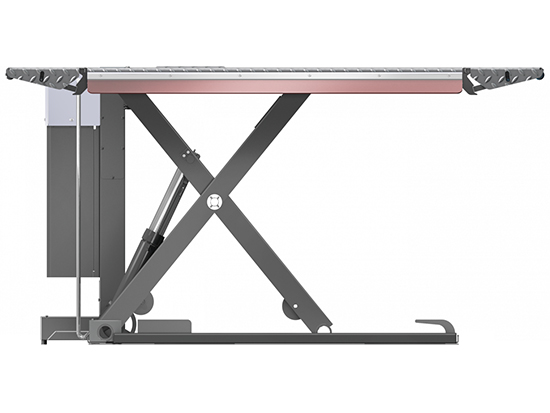

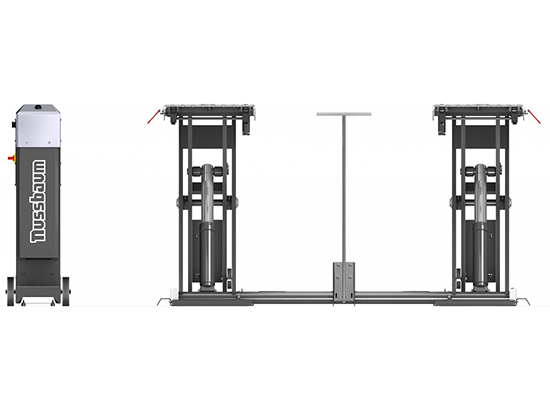

The Sprinter is a hydraulic portable mid-rise lift with a capacity of 7000 pounds and a lifting height of 39". The anti-skid platforms have a length = 55"-79", a width of 17.7", and a clearance of 4.2". The lift comes with mechanical synchronization and an anti-sag hydraulic system. The standard voltage is 208/230 V 1 Ph 60Hz.



Features

  • Lifting height of 39"
  • 7000 lb lifting capacity
  • 16 second lifting speed
  • 360 degree vehicle access
  • anti-skid lifting platforms are galvanized with adjustable lengths
  • can be installed without screws on almost any flat solid surface
  • The mobile set allows the lift to be moved quickly and easily
  • Full hydraulic system
  • no compressed air required



Technical

Oil fill capacity 2 gallons
Lifting height 39 inch
Lifting/lowering time approx. 16 s
Weight approx. 1100 lbs
Color Black
Track length 55-79 inch
Track width 17.8 inch
Power supply 208/230V 60 Hz 1 Ph V/Hz/A
Operating pressure 240 bar
Dimensions (L x W x H) 83 x 63 x 18 inch
