Compressed Air Systems



Champion 25HP, Rotary Screw Fixed Speed Compressor, 100 PSIG, 208-230/460/3/60

USD $16,131.00

27-L18AC100TV
Champion

Click to see additional Options / Models / Accessories Available
Options Accessories

Request a call

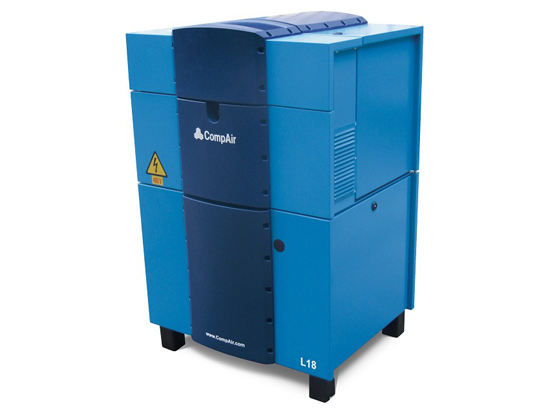

The L Series oil-injected rotary screw compressors provide a range that combines high performance, low operating costs and reliability with ease of installation and servicing. Industries both large and small rely on Champion rotary screw compressors for a constant supply of high-quality compressed air. Specifications and Features: 25HP Pressure at 100 psig 110.9 CFM at 100 psig Fixed Speed Base Mounted 2-Year Warranty Factory Filled with CompLube 8000



Features

  • Compact design which gives you a small footprint.
  • TEFC High Efficiency Motor.
  • Quiet Enclosure to reduce sound levels.
  • Wye/Delta Starter.
  • Delcos Microprocessor based control system.
  • Automatic belt tensioning system.



Technical

Weight approx. 796 lbs
Power supply 208-230, 460 / 60 / 3ph V/Hz/A
Dimensions (L x W x H) 31 x 28 x 47 inch



Options

27-L18AC125TV Champion 25HP, Rotary Screw Fixed Speed Compressor, 125 PSIG, 208-230/460/3/60 $16,131.00 Add to cart
27-L18AC125TVAS12 Champion 25HP AirStation, Rotary Screw Fixed Speed Compressor, 125 PSIG, 208-230/460/3/60, 120 Gallon Tank, With Dryer $19,616.00 Add to cart
27-L18AC145TV Champion 25HP, Rotary Screw Fixed Speed Compressor, 145 PSIG, 208-230/460/3/60 $16,131.00 Add to cart
27-L18AC190TV Champion 25HP, Rotary Screw Fixed Speed Compressor, 190 PSIG, 208-230/460/3/60 $16,131.00 Add to cart



Accessories

27-28H369 CompLube 8000 advanced, synthetic lubricant for CompAir rotary screw compressors -- 2.5 Gallon $513.00 Add to cart
27-28H388 CompLube 8000 advanced, synthetic lubricant for CompAir rotary screw compressors $833.00 Add to cart
27-PA204-2161-1 CompAir L15-L22 Platinum Warranty Kit $455.00 Add to cart
