The charging of the accumulators is carried out in floating operation in order to avoid an overcharge of the accumulators. Herewith a continuous operation is granted. The durability of the accumulators is specified by the manufacturer. The data transfer station is electrically firmly linked with the vehicle gauging unit via connector power pack and data transfer line. When the inclinometer is placed onto the data transfer and charging station, the electrical contact is made to the vehicle gauging unit. The data transmission is effected automatically after actuating the key "Memory". After the data transmission has been carried out, it is indicated on the display of the inclinometer and at the same time the memorised data are deleted in the inclinometer. Only the data memorized via "Save" are transferred. If by error a measuring value has not been registered, i.e. not been memorized via "Save", it has to be measured once again at the measuring place, memorized via "Save" and be transferred again to the PC or the vehicle gauging unit by actuating the key "Memory". Indications:
LED red luminous: Mains connection existing.
LED yellow luminous: Contact connection between inclinometer and data transfer and charging station is ok.
LED green blinking: Accumulator charging procedure.
LED green luminous: Accumulator charging procedure finished.
LED green off: Accumulator charged (no charging procedure required).



Accessories

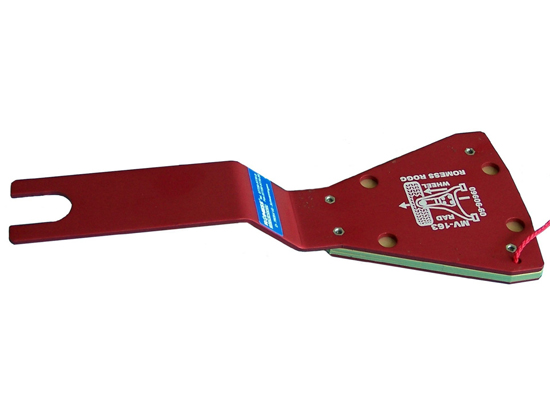

521-900 589032100	Front Adaptor	$536.00	Add to cart

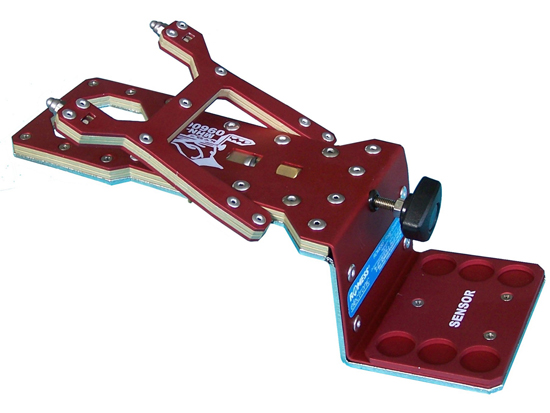

521-900 589042100	Rear Adaptor	$713.00	Add to cart
