Click below to see additional Options / Models, Accessories, Replacement / Service Parts available.
Accessories
Service Start-Up Package — $4,000 Value:
— Extended 24 Month Warranty
— Starter Chemicals
— 2 Months Preventative Maintenance
Includes retract bar to pull the curtains out of the way - allowing the operator to see when driving thru.
Download Labor Savings R.O.I on Hand Washing vs. Automation Calculator
Download Return on Investment Analysis Calculator
Features
- Hydraulic system provides easy operation and minimum maintenance. Allows fingertip adjustments for each washing pad.
- Total vehicle coverage - double cycle for cars, SUVs and minivans, and large vehicles up to 84" high.
- Oscillating soft cloth shaker curtain provides fast, gentle scrubbing action that thoroughly removes stubborn road film, dirt and grime - removing wiper blades is not required.
- Quick and easy installation by factory techs.
- Washes with only 24 gallons of fresh water per car - much less than hand washing.
- Requires no harsh chemicals, just biodegradable soap and water.
- Unit stops and arms open automatically if vehicle leaves before wash is completed.
- Low-maintenance aluminum frame.
- Minimum Space Required: 13' w x 28' 1" l x 10' 6"H.
- Electrical Service: (1) 15 hp motor, 60 amps, 3 phase, 208/230/460 volts.
- Plumbing: 1" at 40 p.s.i. usage rate 22 g.p.m. standard floor drain.
- Compressed Air: 90 p.s.i., 5 c.f.m.
Technical
| Dimensions (L x W x H) | Call for Specifications | inch |
| Power supply | 208, 230 or 480//60 | V/Hz/A |
| Weight approx. | 3,500 | lbs |
Accessories
| 89-2XRET | Double Retract | $3,845.00 | Add to cart |
| 89-85SSA | Rinse Arch Assembly | $2,693.00 | Add to cart |
| 89-DA | 55 Gallon Drum Drying Agent | $669.00 | Add to cart |
| 89-G018 | LED Stop and Go Light | $1,348.00 | Add to cart |
| 89-UB021 | Under Body Wash | $2,341.00 | Add to cart |

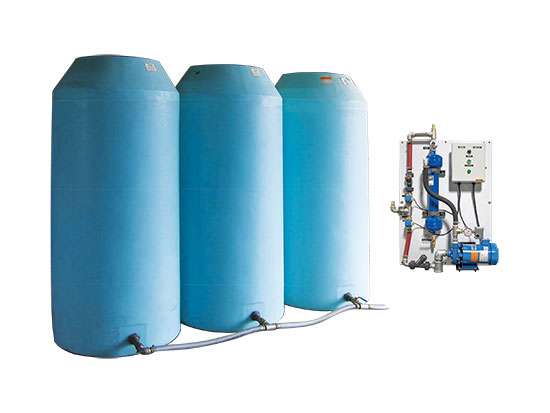

| 89-WRS25 | Water Reclaim System | $18,695.00 | Add to cart |
